Building a Secure Ballot System with Hyperledger Fabric and Verifiable Credentials

Introduction

In today's digital age, the intersection of blockchain technology and democratic processes has opened new possibilities for secure and transparent voting systems. This comprehensive guide explores the implementation of a ballot system using Hyperledger Fabric, enhanced with Verifiable Credentials issued by government authorities. This architecture combines the security and immutability of blockchain with the trust and verification capabilities of government-issued credentials.

The system leverages Hyperledger Fabric's permissioned blockchain framework and the W3C Verifiable Credentials standard to create a robust, transparent, and tamper-proof voting infrastructure while maintaining voter privacy and ensuring legitimate participation through government-verified identities.

Key Takeaways

• A blockchain-based voting system provides immutable records and transparent vote counting while maintaining voter privacy
• Government-issued Verifiable Credentials ensure only eligible voters can participate while preventing double voting
• Hyperledger Fabric's permissioned nature allows for controlled access and enhanced security measures
• Smart contracts automate voting rules and ballot counting, eliminating manual intervention
• The system architecture supports scalability and maintains voter anonymity through sophisticated cryptographic techniques

System Architecture Overview

Architecture Diagram Explanation

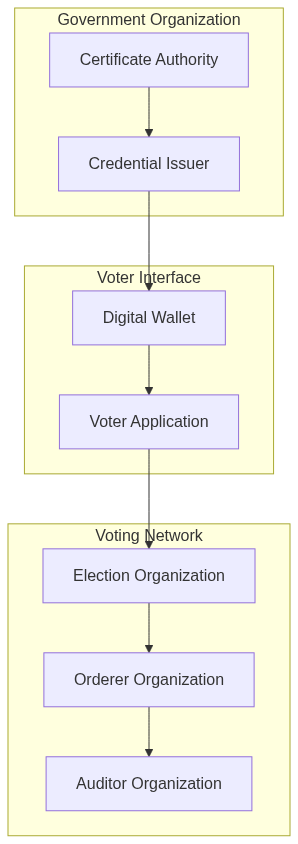

The system architecture diagram illustrates the three main components of our voting system:

1. Government Organization:

   • Certificate Authority (CA): Issues digital certificates for all network participants
   • Credential Issuer: Issues Verifiable Credentials to eligible voters
   • This separation ensures proper identity management and credential issuance

2. Voting Network:

   • Orderer Organization: Manages transaction ordering and block creation
   • Election Organization: Manages the voting process and ballot smart contracts
   • Auditor Organization: Provides independent verification of the voting process
   • These organizations form the core blockchain network with distinct responsibilities

3. Voter Interface:

   • Digital Wallet: Stores voter's Verifiable Credentials securely
   • Voter Application: Provides the interface for voters to cast their votes
   • This layer ensures user-friendly interaction while maintaining security

Organizations and Roles

Organizations and Roles Explanation

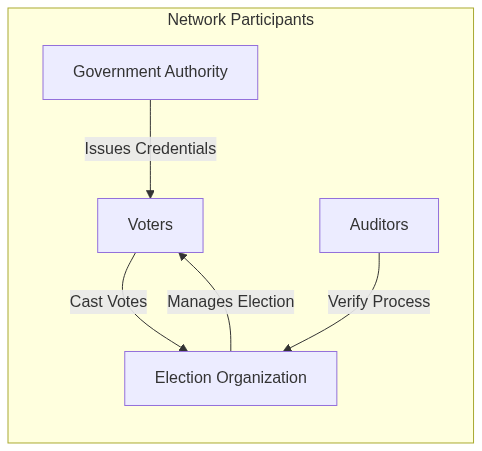

This diagram shows the interaction between different participants:

1. Government Authority:

   • Issues Verifiable Credentials to eligible voters
   • Manages the identity verification process
   • Controls the credential revocation list

2. Election Organization:

   • Creates and manages ballots
   • Processes votes through smart contracts
   • Maintains the voting infrastructure

3. Auditors:

   • Verify the voting process independently
   • Monitor for irregularities
   • Validate election results

4. Voters:

   • Receive credentials from the government
   • Cast votes through the system
   • Verify their vote was recorded correctly

Core Components - Smart Contracts (Chaincode)

Smart Contracts Explanation

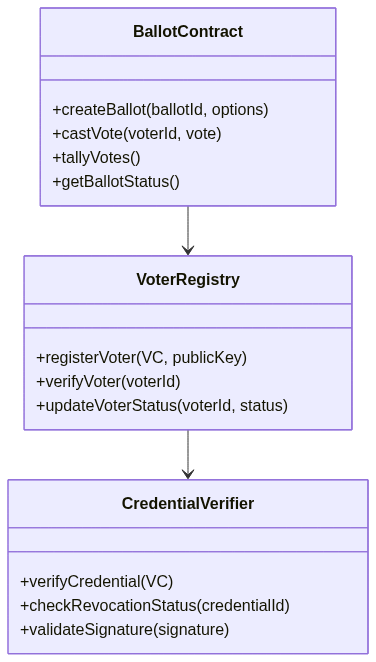

The class diagram shows the three main smart contracts and their relationships:

1. VoterRegistry Contract:

   • Manages voter registration and verification
   • Maintains voter status and eligibility
   • Interfaces with the CredentialVerifier

2. BallotContract:

   • Handles ballot creation and management
   • Processes vote casting
   • Manages vote tallying and results

3. CredentialVerifier:

   • Validates Verifiable Credentials
   • Checks credential revocation status
   • Ensures signature validity

Organization-Function Access Matrix

Implementation Process - Network Setup

Network Setup Explanation

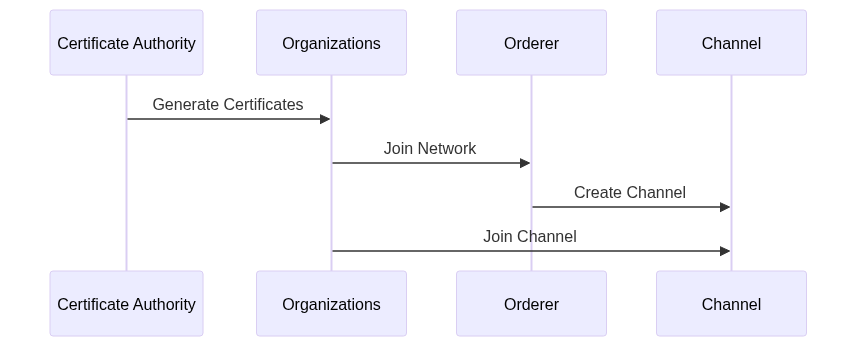

The sequence diagram illustrates the network initialization process:

1. Certificate Generation:

   • CA generates certificates for all organizations
   • Ensures secure identity management
   • Establishes trust anchors

2. Network Join:

   • Organizations join the network using their certificates
   • Orderer node is established
   • Network policies are set

3. Channel Creation:

   • Secure communication channels are established
   • Organizations join relevant channels
   • Access controls are implemented

Voting Process Flow

Voting Process Explanation

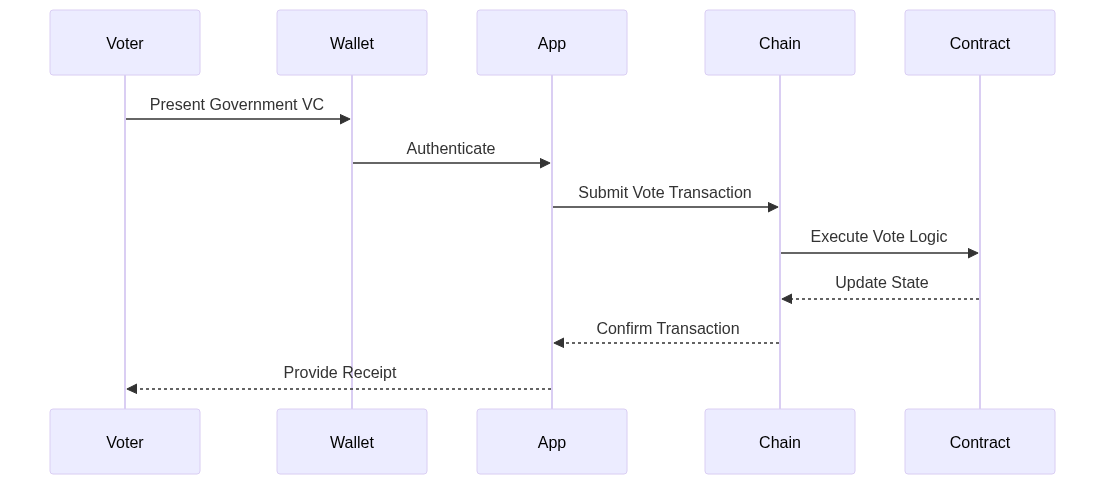

The sequence diagram shows the complete voting process:

1. Authentication:

   • Voter presents their Verifiable Credential
   • Digital wallet verifies the credential
   • Application authenticates the voter

2. Vote Submission:

   • Application creates the vote transaction
   • Transaction is submitted to the blockchain
   • Smart contract processes the vote

3. Confirmation:

   • State is updated on the blockchain
   • Transaction is confirmed
   • Voter receives a receipt

Security Implementation

Security Implementation Explanation

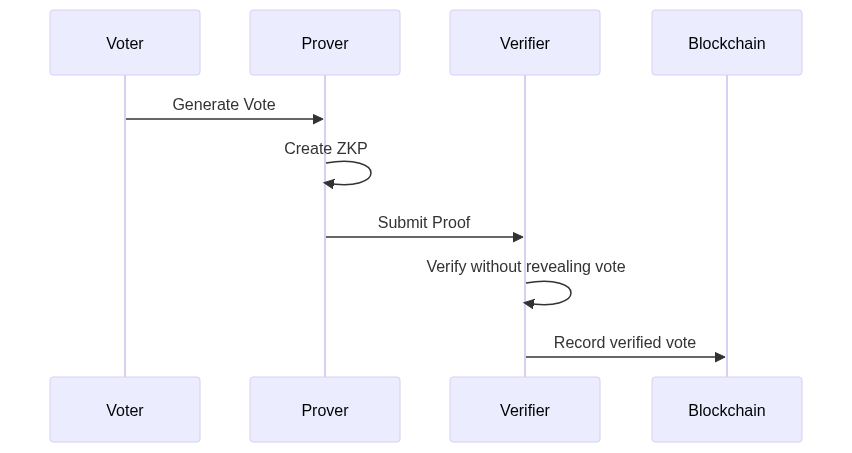

The diagram shows the zero-knowledge proof process:

1. Vote Generation:

   • Voter creates their vote
   • Vote is encrypted
   • System generates necessary proofs

2. Proof Creation:

   • Zero-knowledge proof is generated
   • Proves vote validity without revealing content
   • Ensures voter eligibility

3. Verification:

   • Proof is verified
   • Vote is recorded if valid
   • Privacy is maintained throughout

Deployment Architecture

Deployment Architecture Explanation

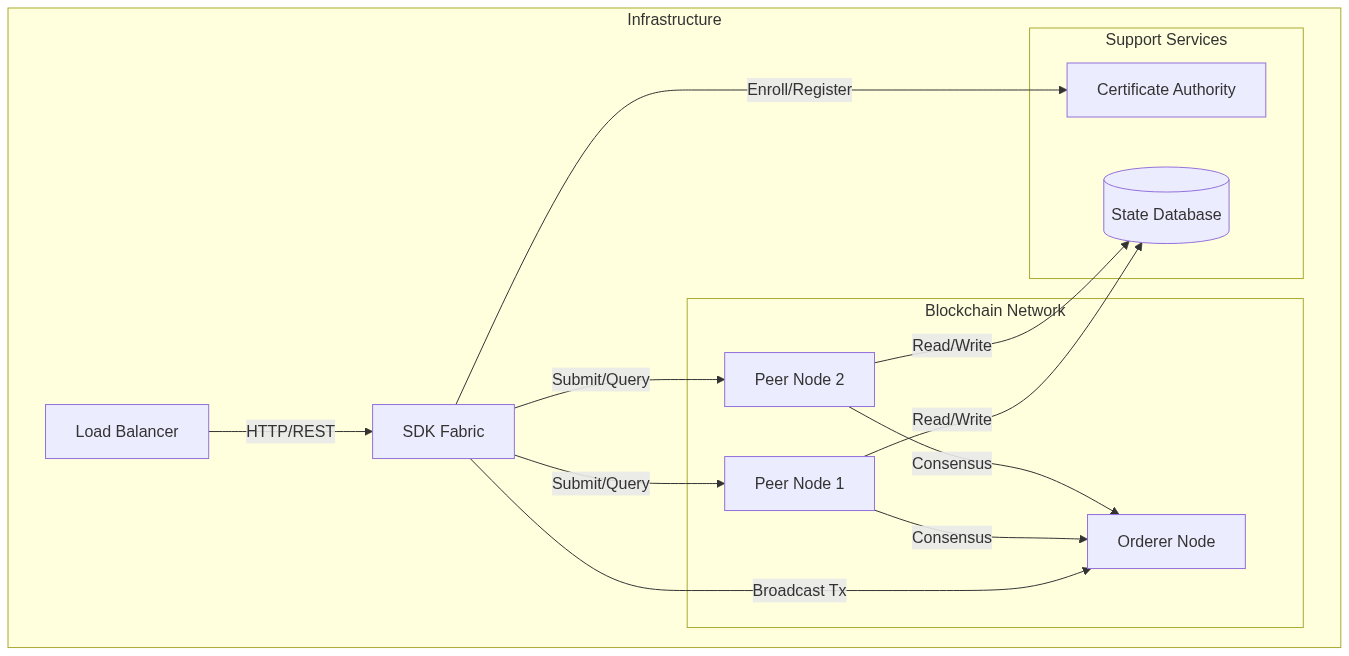

The deployment diagram shows the physical infrastructure:

1. Frontend Layer:

   • Load balancer distributes traffic
   • API Gateway manages requests
   • Ensures scalability and availability

2. Blockchain Network:

   • Multiple peer nodes for redundancy
   • Orderer node for transaction sequencing
   • Distributed ledger across nodes

3. Support Services:

   • Certificate Authority for identity management
   • State database for world state
   • Cache for performance optimization

In the next post, we will explore the implementation details of the system, including the code for the smart contracts, the application logic, and the deployment scripts.
